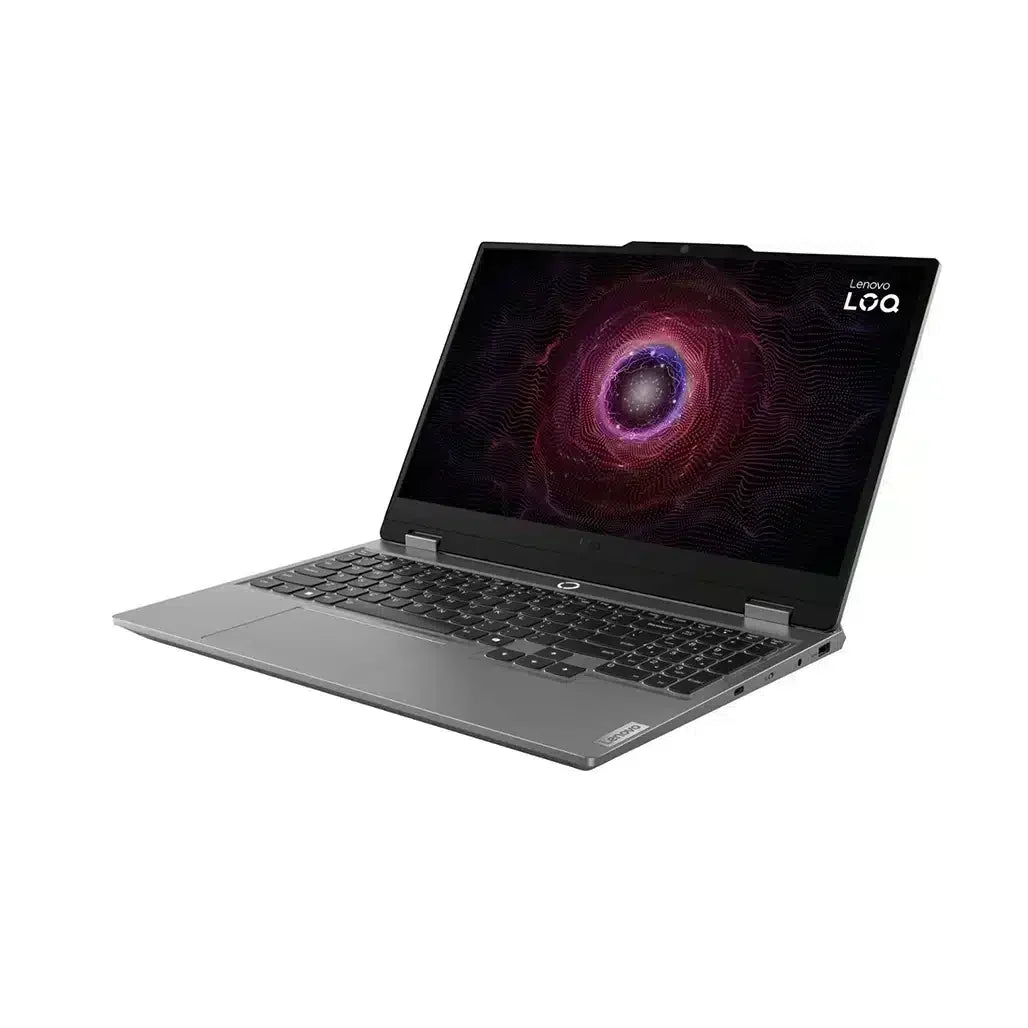

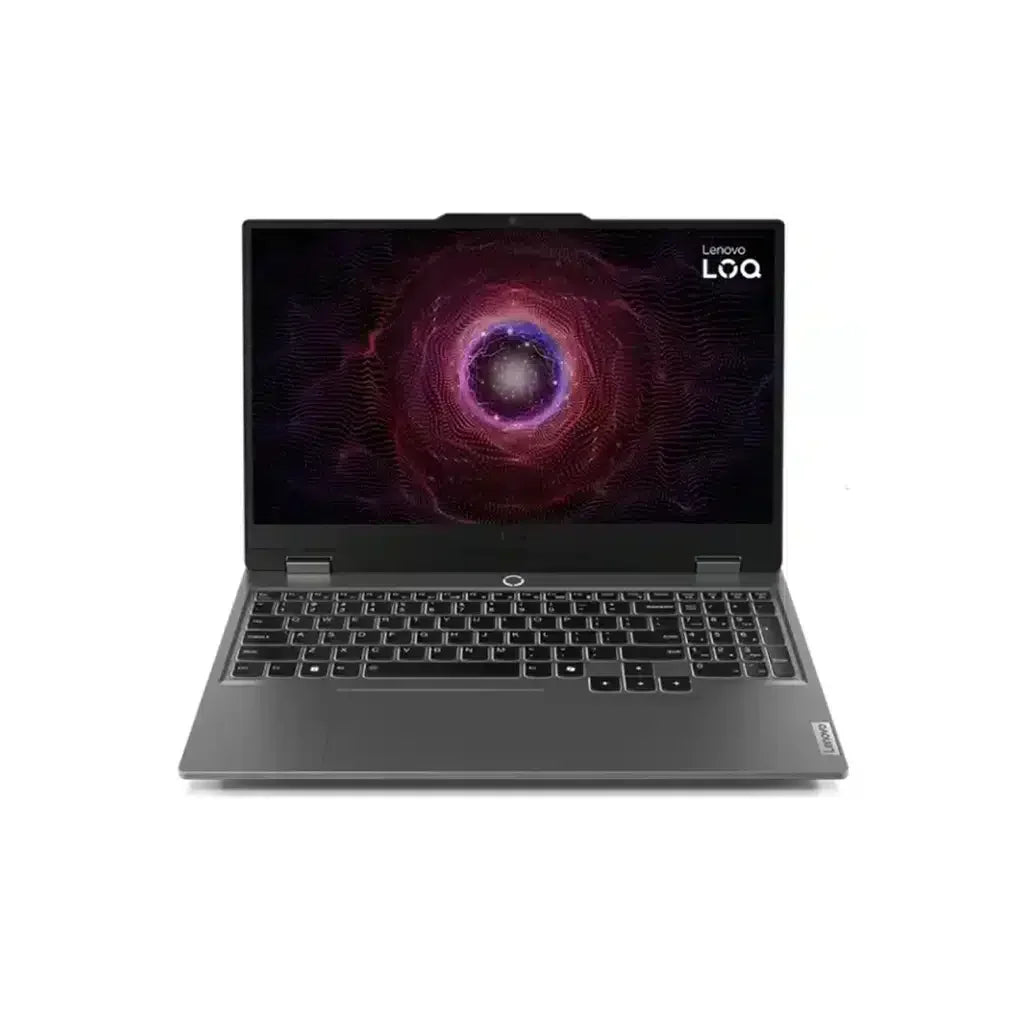

Lenovo LOQ 15IRX9 83DV00R7AX: Performance-focused Gaming on a Budget



The Lenovo LOQ 15IRX9 83DV00R7AX is designed to deliver a strong gaming experience to a wider audience, offering a balance of modern components and essential gaming features in a robust, yet accessible, package. This specific configuration features a powerful 13th Gen Intel Core i7 HX processor and NVIDIA's GeForce RTX 4060 Laptop GPU, making it capable of handling contemporary games at 1080p resolution.



Processor (CPU)



The Lenovo LOQ 15IRX9 laptop is powered by the Intel® Core™ i7-13650HX Processor. This is a high-performance mobile CPU from Intel's 13th generation "Raptor Lake" series, designed for intensive tasks and gaming. Key specifications include:

• 14 Cores / 20 Threads: This configuration includes 6 Performance-cores (P-cores) and 8 Efficient-cores (E-cores), providing excellent multi-threaded performance.

• Base Clock (P-cores): 2.6 GHz

• Max Turbo Frequency (P-cores): Up to 4.90 GHz, ensuring strong single-core performance crucial for gaming.

• L3 Cache: A substantial 24 MB of Intel Smart Cache.

• TDP (Thermal Design Power): Configurable from 45W up to a maximum boost TDP of 157W, allowing the processor to draw significant power for sustained performance under load.

• Integrated Graphics: Includes Intel UHD Graphics (16EU), sufficient for basic desktop tasks and power efficiency when the dedicated GPU isn't needed.

• Launch Date: Q1 2023.



Graphics Processing Unit (GPU) :



The graphics horsepower comes from the NVIDIA® GeForce RTX™ 4060 Laptop GPU. This GPU is based on NVIDIA's Ada Lovelace architecture (40-series), offering a significant uplift in performance and efficiency compared to previous generations, particularly for 1080p gaming. Key specifications and features include:

• VRAM: 8GB GDDR6 dedicated memory, which is ample for most modern games at FHD resolution with high settings.

• Architecture: Built on the efficient Ada Lovelace architecture.

• Boost Clock: Up to 2370 MHz.

• TGP (Total Graphics Power): In the Lenovo LOQ 15ARP9, the RTX 4060 typically operates with a TGP of around 105W to 115W (including Dynamic Boost), which is a healthy range for this GPU, allowing it to perform well.

• Key Technologies: Supports the latest NVIDIA technologies:

  • Ray Tracing Cores (3rd Gen): Provides realistic lighting, reflections, and shadows in supported games.

  • Tensor Cores (4th Gen): Accelerates AI-powered features like NVIDIA DLSS 3 (with Frame Generation), which uses AI to significantly boost frame rates while maintaining good image quality.

  • NVIDIA Advanced Optimus: Intelligently switches between the integrated and discrete graphics for optimal performance or battery life without requiring a system reboot.

  • NVIDIA Reflex: Reduces system latency for competitive gaming.

  • Max-Q Technologies: A suite of AI-powered technologies that optimize system performance, power, and acoustics for thin and light gaming laptops.



Display :



The Lenovo LOQ 15IRX9 typically features a gaming-ready display:

• Size: 15.6-inch panel.

• Resolution: 1920 x 1080 (FHD), providing crisp visuals for gaming.

• Aspect Ratio: 16:9.

• Refresh Rate: A smooth 144Hz refresh rate, crucial for competitive gaming and fluid motion.

• Brightness: Typically 300 nits, offering decent brightness for indoor use.

• Color Gamut: Covers 100% sRGB, ensuring accurate and vibrant colors for both gaming and content creation.

• Features:

  • Anti-glare display: Reduces reflections for better visibility.

  • NVIDIA G-SYNC: Synchronizes the display's refresh rate with the GPU's output, eliminating screen tearing and minimizing stuttering for a smoother gaming experience.

  • TÜV Low Blue Light (Software): Reduces eye strain during long gaming sessions.



Memory (RAM) and Storage :



• Memory: Typically comes with 24GB of DDR5-4800MHz SO-DIMM RAM. The laptop usually features two SO-DIMM slots, supporting expansion up to 32GB (and sometimes even 64GB depending on the specific motherboard configuration and memory module availability).

• Storage: A fast 512GB PCIe® 4.0 NVMe™ M.2 SSD is common, offering rapid boot times and quick game loading. The LOQ series often includes a second M.2 2280 PCIe Gen 4.0 x4 slot for easy storage expansion.



Cooling System :



Lenovo LOQ 15IRX9 laptops feature an effective cooling system designed to maintain performance during extended gaming sessions:

• Dual-Fan Design: Utilizes two 12V fans.

• Opposite Spin Direction: Fans spin in opposite directions to enhance airflow and improve heat management.

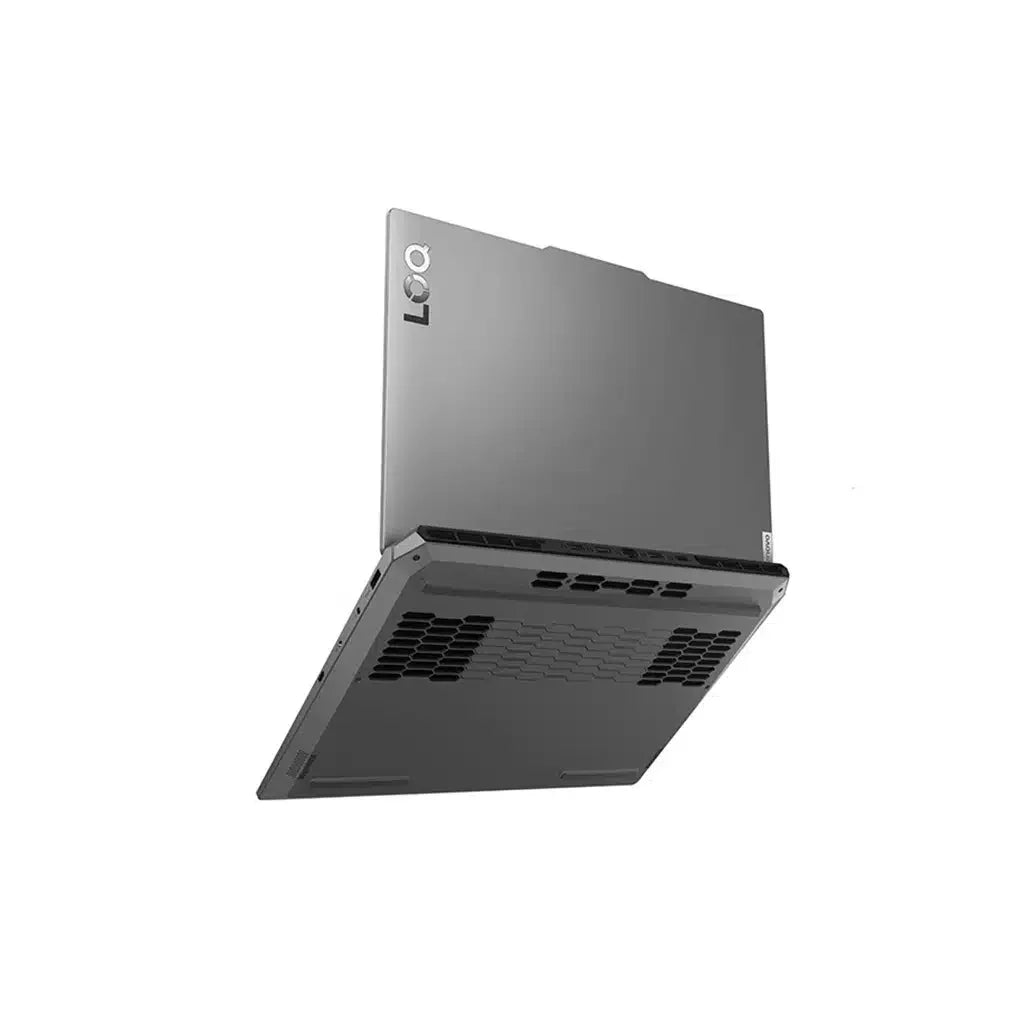

• Rear Exhausts: Heat is smartly expelled from the rear of the laptop to keep the keyboard area cooler.

• Sealed Chamber: Circulates cool air efficiently and pushes hot air out.

• Lenovo AI Engine+ with LA1 AI Chip: This dedicated AI chip dynamically optimizes CPU and GPU performance based on the workload (e.g., gaming, productivity) to ensure peak performance and efficient cooling without manual adjustments.



Design, Keyboard, and Audio :



The Lenovo LOQ 15IRX9 series features a minimalist yet durable design.

• Chassis: Luna Grey color with a PC-ABS (Polycarbonate-ABS) case material for both top and bottom, contributing to its durability.

• Durability: Built with MIL-STD-810H military standard durability, ensuring reliability for daily use.

• Keyboard: A 6-row keyboard with multimedia Fn keys and a numeric keypad. This specific model typically features a White Backlit keyboard. Some variants might offer 4-Zone RGB. It has 1.5mm key travel and 100% anti-ghosting.
• Touchpad: Buttonless Mylar® surface multi-touch touchpad with Precision TouchPad (PTP) support.
• Audio: Stereo speakers (2W x2) optimized with Nahimic Audio for immersive sound.
• Microphone: Dual-microphone array.
• Webcam: HD 720p or FHD 1080p camera with an E-shutter for privacy.
• Weight: Starting at approximately 2.38 kg (5.25 lbs), reasonably portable for a gaming laptop.
• Dimensions: 359.86 x 258.7 x 21.9-23.9 mm (14.17 x 10.19 x 0.86-0.94 inches).



Connectivity :

  A comprehensive set of ports ensures good connectivity:

• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2) with Lenovo® PD 140W and DisplayPort™ 1.4: Versatile port for high-speed data, display output, and power delivery.
• 3x USB-A (USB 5Gbps / USB 3.2 Gen 1): For connecting various peripherals.
• 1x HDMI® 2.1, up to 8K/60Hz: For connecting to high-resolution external displays.
• 1x Headphone / microphone combo jack (3.5mm): For headsets.
• 1x Ethernet (RJ-45): Provides a stable wired network connection (Gigabit Ethernet, supports Wake-on-LAN).
• 1x Power connector: For the main power adapter.
• Wireless: Features Wi-Fi 6 (802.11ax 2x2) for fast and stable wireless internet and Bluetooth® 5.2 for connecting wireless accessories.



Battery and Power :



• Battery: Integrated 60Whr 4-cell Li-ion battery, offering decent battery life for non-gaming tasks.
• Fast Charging: Supports Rapid Charge Pro (up to 50% in 30 minutes, 100% in 60 minutes) with the included power adapter.
• Power Supply: Typically comes with a 170W or 230W Slim Tip AC Adapter. The RTX 4060 TGP can reach its full potential with the 230W adapter. It also supports 140W USB-C Power Delivery for convenient charging on the go (USB-C adapter sold separately).

The Lenovo LOQ 15ARP9 83DV00R7AX, with its Intel Core i7-13650HX and RTX 4060, is a strong contender for gamers seeking a capable and durable machine for 1080p high-refresh-rate gaming and productivity tasks, all within a more accessible price point than high-end Legion models.

---



Key Specifications :



• Model: Lenovo LOQ 15IRX9 83DV00R7AX (Note: "ARP9" usually implies AMD, but this specific variant is specified with Intel. It might share a chassis with the Intel-based LOQ 15IRX9)
• Processor: Intel® Core™ i7-13650HX (14 Cores / 20 Threads, up to 4.90 GHz, 24MB L3 Cache)
• Graphics: NVIDIA® GeForce RTX™ 4060 Laptop GPU (8GB GDDR6, Ada Lovelace, DLSS 3, Ray Tracing, Advanced Optimus, TGP 105W-115W)
• Display: 15.6-inch FHD (1920x1080) IPS, Anti-glare, 144Hz Refresh Rate, 300 nits, 100% sRGB, NVIDIA® G-SYNC®, TÜV Low Blue Light (Software).
• Memory (RAM): 24GB DDR5-4800MHz SO-DIMM (Expandable, 2 slots)
• Storage: 512GB PCIe® 4.0 NVMe™ M.2 SSD (2 M.2 slots)
• Operating System: Windows 11 Home (Commonly preloaded, but configurations may vary)
• Cooling: Advanced thermal design with Dual 12V fans, rear exhausts, and Lenovo AI Engine+ with LA1 AI Chip for dynamic optimization.
• Keyboard: 1-Zone White Backlit Chiclet Keyboard, 1.5mm key travel, 100% Anti-Ghosting.
• Audio: Stereo speakers (2W x2), optimized with Nahimic Audio, Dual-microphone array.
• Webcam: HD 720p or FHD 1080p with E-shutter.
• Ports: 1x USB-C 3.2 Gen 2 (DP 1.4, PD 140W), 3x USB-A 3.2 Gen 1, 1x HDMI 2.1, 1x RJ45 LAN, 1x Combo Audio Jack, 1x Power Connector.
• Wireless: Wi-Fi 6 (802.11ax 2x2), Bluetooth 5.2.
• Battery: Integrated 60Wh Li-ion, supports Rapid Charge Pro, 140W USB-C PD.
• Power Adapter: 170W or 230W Slim Tip AC Adapter.
• Weight: Starting at 2.38 kg (5.25 lbs).
• Durability: MIL-STD-810H military standard.
• Color: Luna Grey.
