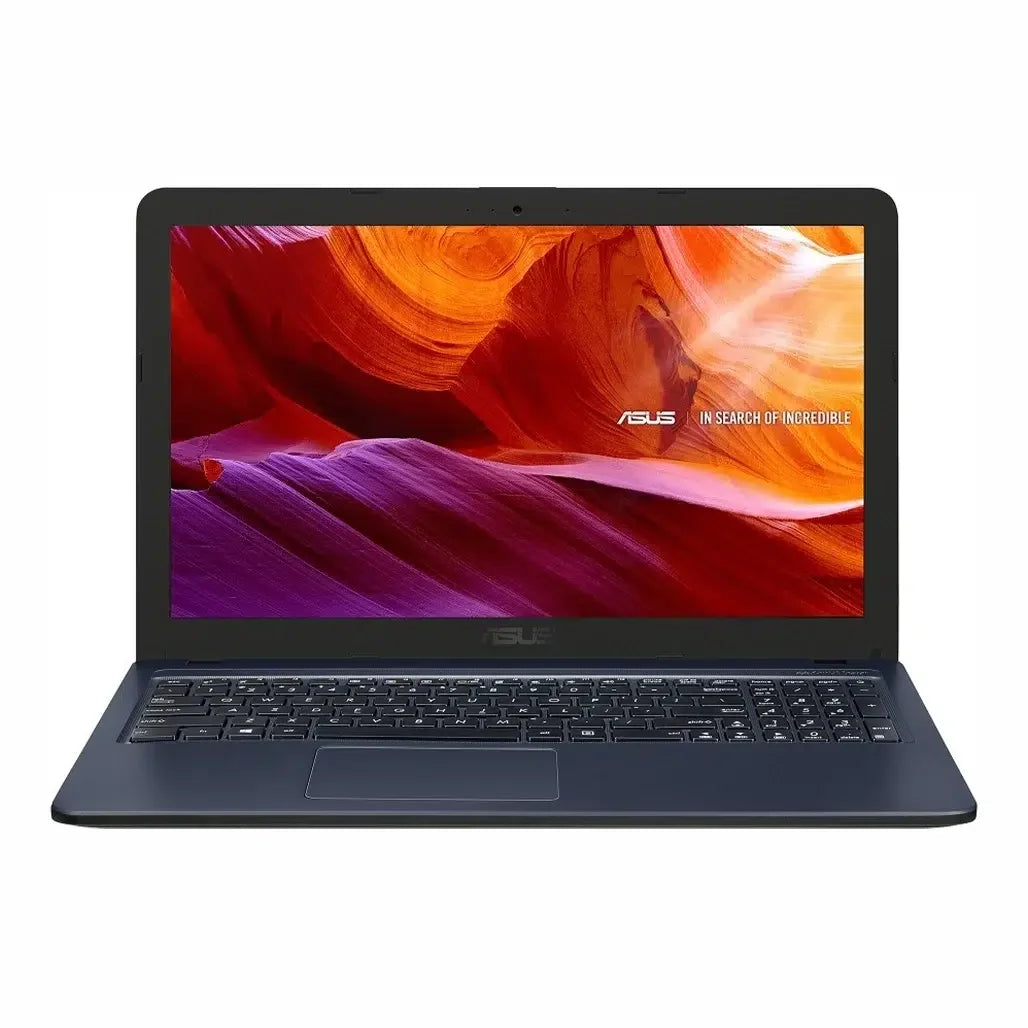

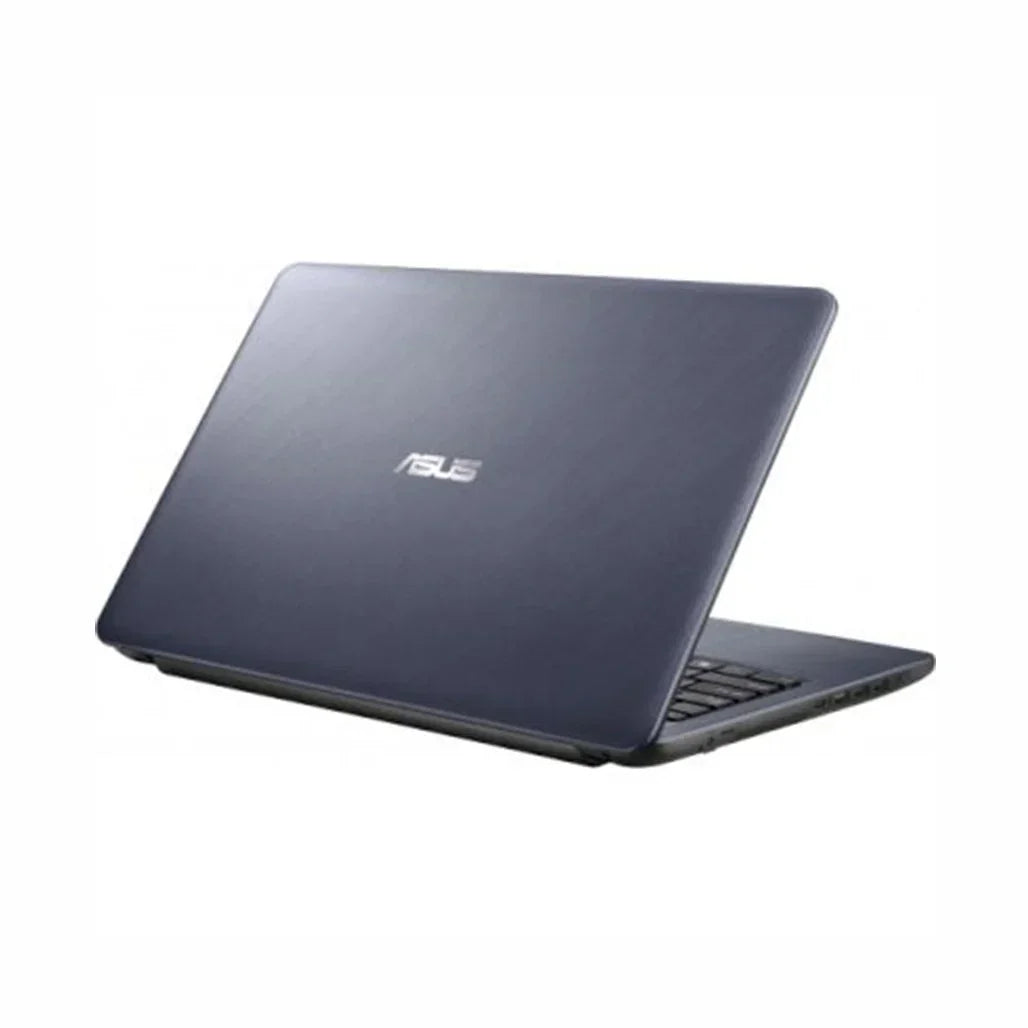

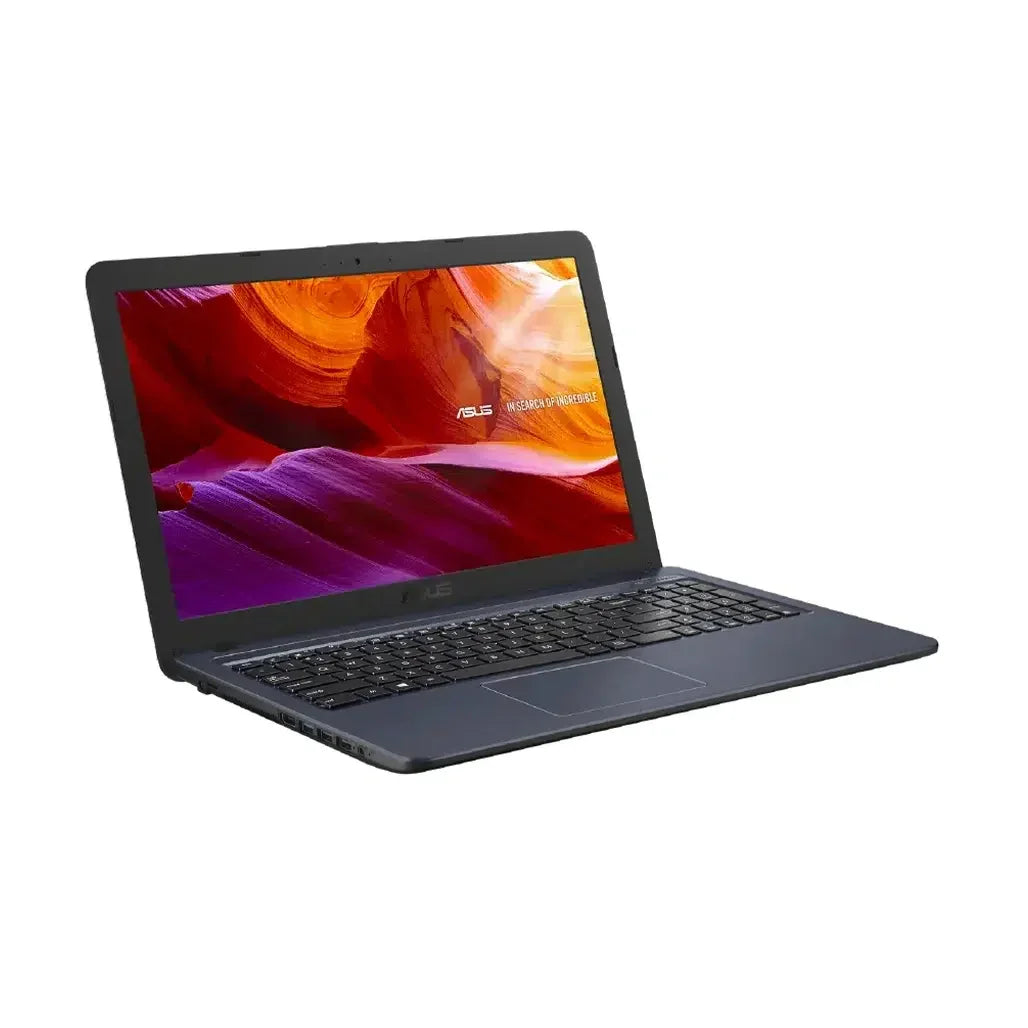

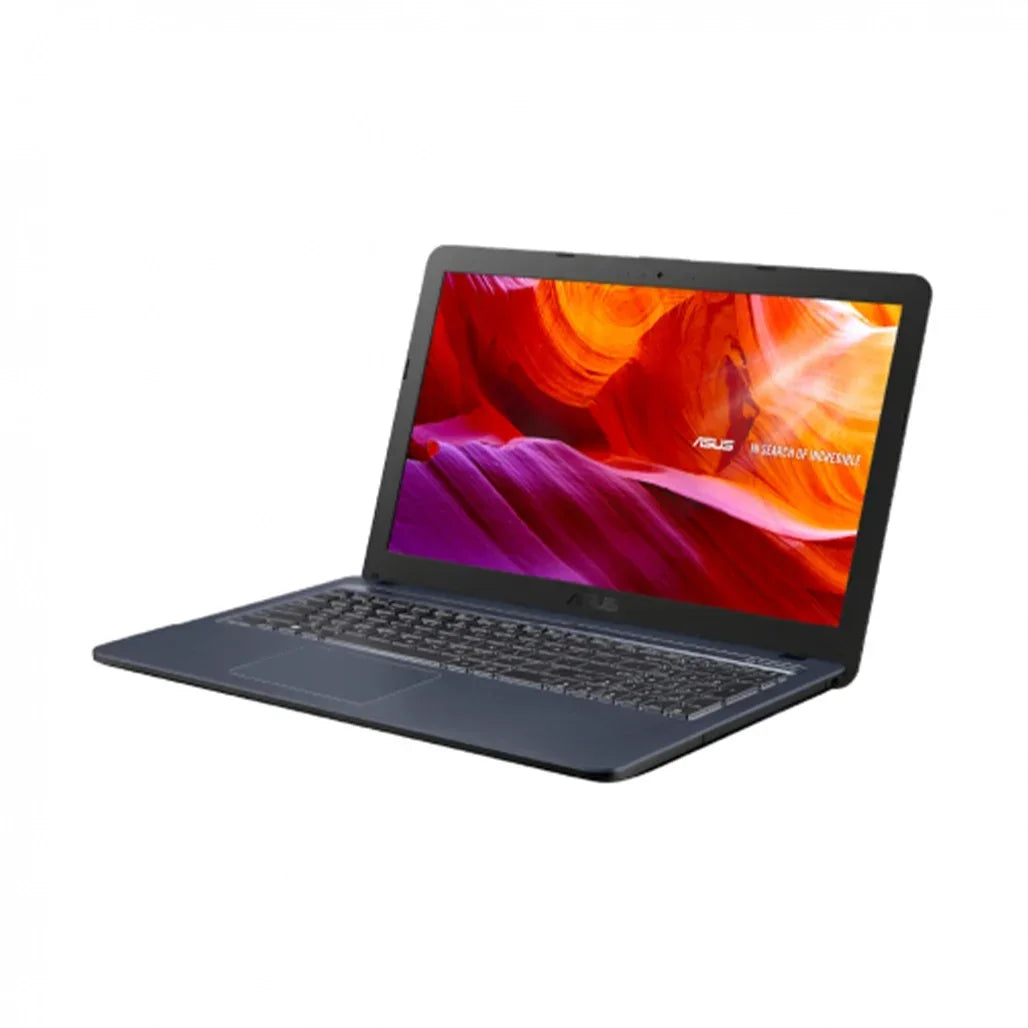

ASUS VivoBook X543M: Simple and Reliable for Everyday Tasks

  The ASUS VivoBook X543M is an entry-level laptop built for users who need a device for essential computing tasks such as web Browse, email, word processing, and media consumption. It is a budget-friendly option that prioritizes affordability and functionality over high performance.

Processor (CPU)

The laptop is powered by the Intel® Celeron® N4020 Processor. This is a low-power, dual-core processor from Intel's Gemini Lake Refresh family. It is designed for maximum efficiency in basic computing tasks, not for demanding applications or gaming. Key specifications include:

• 2 Cores / 2 Threads: Sufficient for running a few applications simultaneously.
• Base Clock: 1.1 GHz.
• Burst Frequency: Up to 2.8 GHz.
• L2 Cache: 4 MB.
• TDP (Thermal Design Power): 6W, which is very low, ensuring minimal heat generation and long battery life.
• Release Date: Q4'19.

Graphics Processing Unit (GPU)

Graphics are handled by the Intel® UHD Graphics 600, which is an integrated graphics solution. This GPU is built to handle basic visual tasks and multimedia. It is not capable of running modern games or demanding graphical software. Key features include:Celeron N4020

• Execution Units: 12 EUs.
• Dynamic Frequency: Up to 650 MHz.
• Capabilities: Supports 4K resolution output to external displays and provides hardware acceleration for video decoding.
• Memory: Shares the system's main memory (UMA - Unified Memory Architecture).



Display

The ASUS VivoBook X543M features a standard 15.6-inch display:

• Size: 15.6-inch.
• Resolution: HD (1366 x 768). This is a lower resolution, but common for budget-friendly laptops, suitable for basic tasks.
• Aspect Ratio: 16:9.
• Features: An Anti-Glare coating helps to reduce reflections, making the screen more comfortable to view in bright environments.
• Brightness: Approximately 200 nits, which is standard for a laptop in this class.



Memory (RAM) and Storage

• Memory: The system typically comes with 4GB of DDR4 RAM. This is the minimum amount of RAM needed for the Windows operating system and basic applications, but it can be a bottleneck for multitasking. The RAM is soldered onto the motherboard.
• Storage: A 1TB  is a very common configuration for this model. This provides a large amount of storage capacity for documents, photos, and videos, but it is much slower than a modern SSD, leading to longer boot times and application loading times.



Design and Build

The VivoBook X543M is designed to be lightweight and portable for its size.

• Chassis: It has a plastic chassis with a brushed metal-like finish for an elegant look, often in a Star Grey or Transparent Silver color.
• Weight: Weighing around 1.9 kg (4.2 lbs), it is relatively light for a 15-inch laptop, making it easy to carry.
• Keyboard: A full-size Chiclet keyboard with a numeric keypad. The keys have decent travel, which is suitable for comfortable typing.
• Audio: Features ASUS SonicMaster and Audio Wizard software to enhance the sound quality from its built-in stereo speakers.
• Webcam: A basic VGA webcam is included, sufficient for simple video calls but not for high-quality video conferencing.



Connectivity

The laptop provides essential ports for everyday use:

• 1x USB 3.2 Gen 1 Type-A port for fast data transfer.
• 2x USB 2.0 Type-A ports.
• 1x HDMI 1.4 port for connecting to an external monitor or TV.
• 1x 3.5mm Combo Audio Jack for a headset.
• 1x MicroSD Card Reader.
• Wireless: Features Wi-Fi 5 (802.11ac) and Bluetooth® 4.1.



Battery and Power

• Battery: A 3-cell, 33Wh Li-ion battery is included, providing sufficient battery life for simple tasks away from a power outlet.
• Power Adapter: A compact 33W or 45W AC adapter is included, which is very portable.

The ASUS VivoBook X543M is a straightforward, no-frills laptop. Its hardware configuration is best suited for light-duty tasks, making it a viable option for students or casual users who need an affordable machine for basic schoolwork, internet use, and media consumption.

---



Key Specifications



• Model: ASUS VivoBook X543M
• Processor: Intel® Celeron® N4020 (2 Cores / 2 Threads, up to 2.8 GHz, 4MB L2 Cache)
• Graphics: Intel® UHD Graphics 600 (Integrated)
• Display: 15.6-inch HD (1366 x 768), Anti-Glare, 16:9 Aspect Ratio.
• Memory (RAM): 4GB DDR4
• Storage: 1TB
• Keyboard: Chiclet keyboard with numeric keypad.
• Audio: Stereo Speakers with ASUS SonicMaster
• Webcam: VGA
• Ports: 1x USB 3.2 Gen 1 Type-A, 2x USB 2.0 Type-A, 1x HDMI 1.4, 1x Combo Audio Jack, 1x MicroSD Card Reader.
• Wireless: Wi-Fi 5 (802.11ac), Bluetooth 4.1.
• Battery: 3-cell, 33Wh Li-ion.
• Weight: 1.9 kg (4.2 lbs)
• Color: Dark Grey
