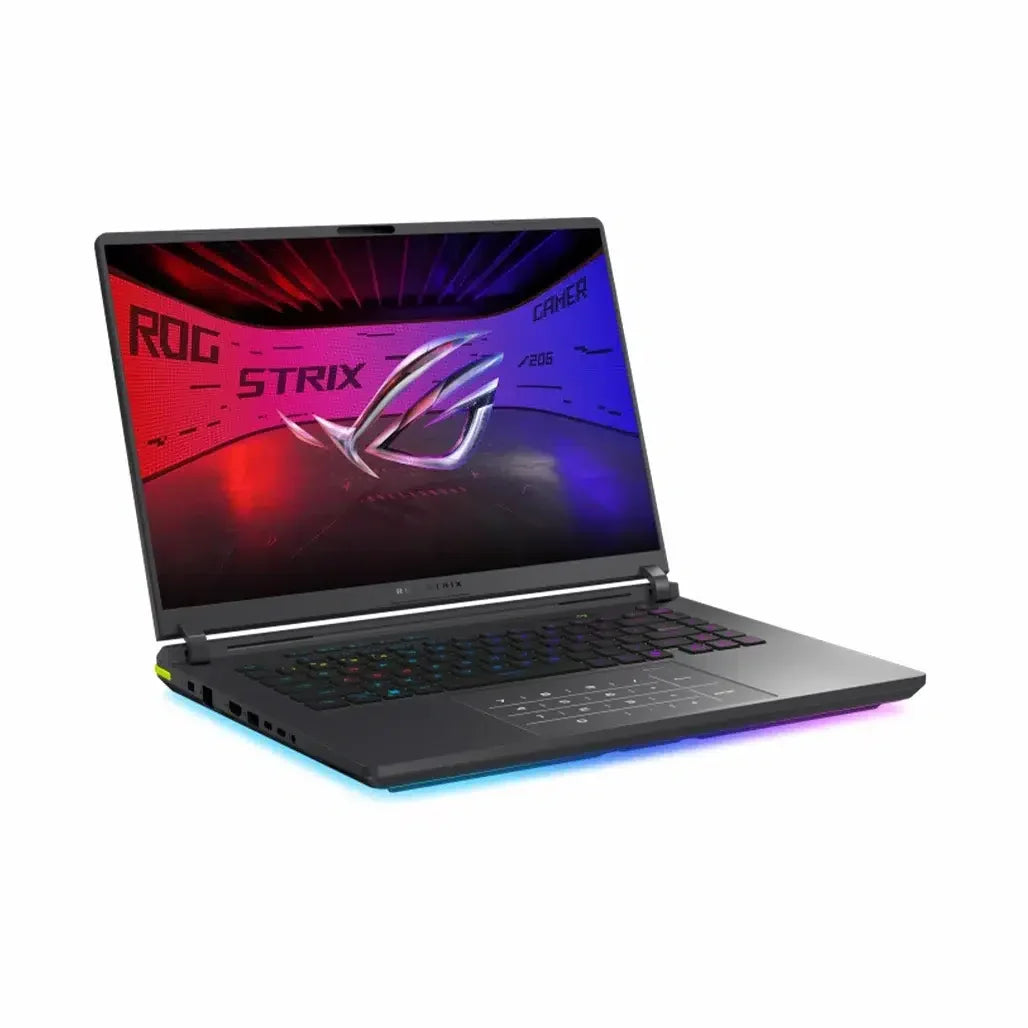

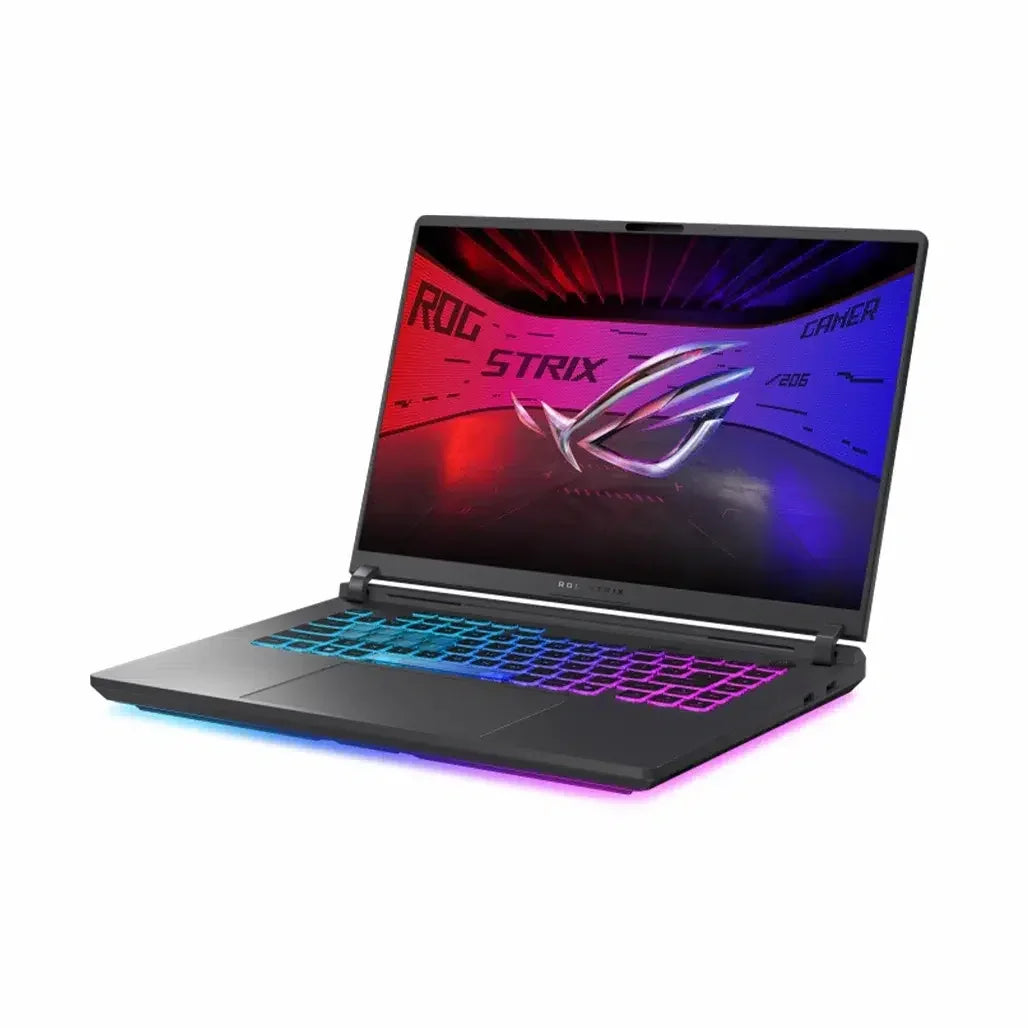

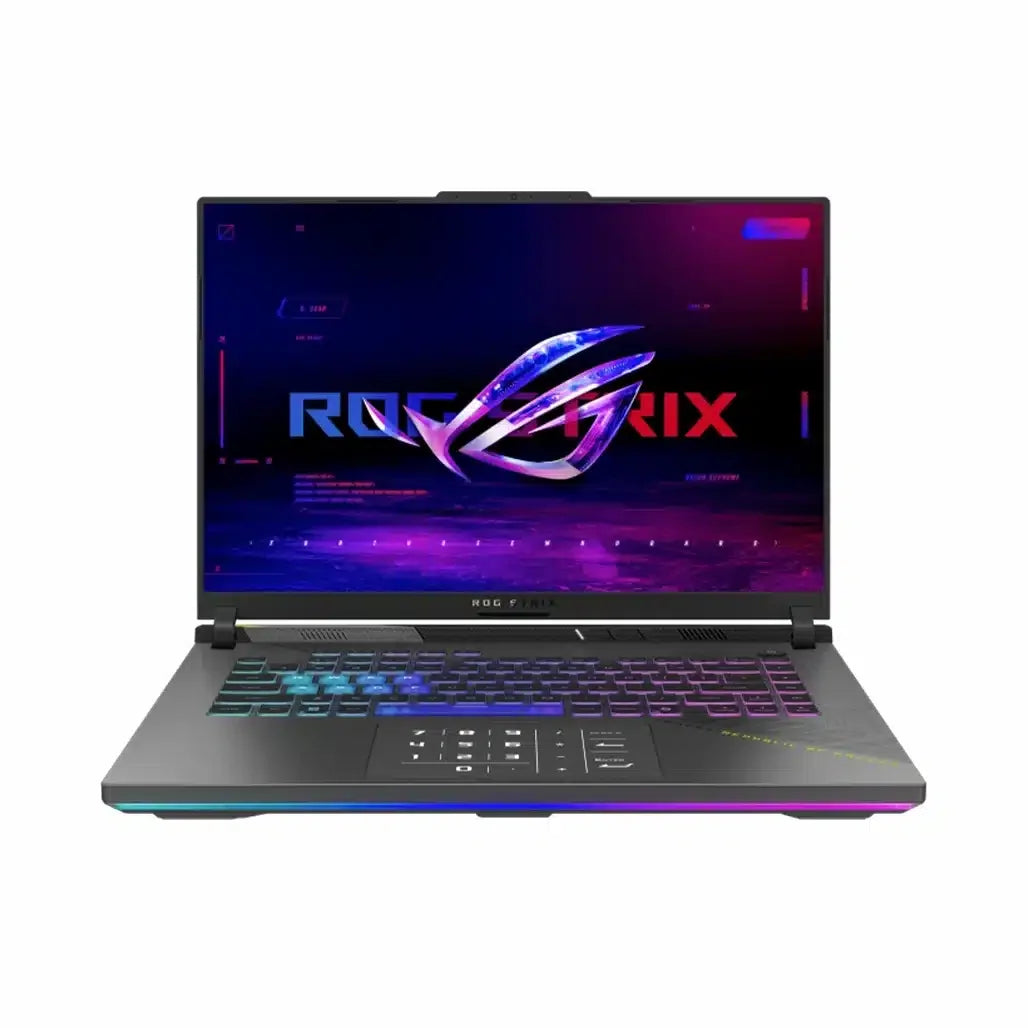

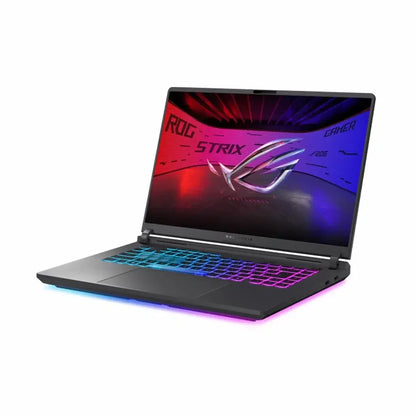

Asus ROG STRIX G16 G614PR-G16R9X7: Elite Performance for Gaming and Content Creation

Processor (CPU) :

• 16 Cores / 32 Threads: Delivering immense parallel processing capability for demanding workloads.
• Base Clock: 2.4 GHz
• Max Boost Clock: Up to 5.3 GHz, ensuring high clock speeds for single-threaded performance.
• L3 Cache: A substantial 64 MB of L3 cache to minimize latency for frequently accessed data.
• TDP (Thermal Design Power): Configurable from 55W up to 75W, allowing for sustained high performance under load.
• Integrated Graphics: Includes integrated AMD Radeon™ 610M Graphics, which efficiently handles less demanding visual tasks, preserving battery life and automatically engaging the discrete GPU when needed.
• Release Date: April 2025

Graphics Processing Unit (GPU) :

• VRAM: 12GB GDDR7 dedicated memory, providing ample bandwidth and capacity for high-resolution textures and complex scenes in modern games and applications.
• Architecture: Built on the cutting-edge Blackwell architecture.
• ROG Boost: ASUS's optimized tuning allows for a higher Total Graphics Power (TGP), typically configured for a max TGP of 140W (115W base + 25W Dynamic Boost), maximizing performance.
• Key Technologies: Supports the latest NVIDIA innovations:
  • Ray Tracing Cores (5th Gen): Enhances realism with advanced lighting, reflections, and shadows.
  • Tensor Cores (5th Gen): Powers AI-accelerated features like NVIDIA DLSS 4, which leverages AI to generate additional high-quality frames, dramatically boosting frame rates.
  • NVIDIA Advanced Optimus: Intelligently switches between integrated and discrete graphics for optimal performance and battery life without needing a restart.
  • NVIDIA Studio Drivers: Ensures peak performance and stability for creative applications.



Display :

• Resolution: 1920 x 1200 (WUXGA) FHD+, offering crisp images with a productive aspect ratio.
• Aspect Ratio: A 16:10 aspect ratio, providing more vertical screen space for multitasking and content viewing.
• Refresh Rate: A smooth 165Hz refresh rate, crucial for competitive gaming, ensuring fluid motion and reduced input lag.
• Response Time: A fast 3ms response time to minimize ghosting.
• Brightness: 300 nits brightness.
• Color Gamut: Covers 100% sRGB, providing good color accuracy for gaming and general use.
• Features:
  • Anti-glare display: Reduces reflections for comfortable viewing.
  • NVIDIA G-SYNC: Synchronizes the display's refresh rate with the GPU's frame rate to eliminate screen tearing and minimize stuttering.
  • Dolby Vision HDR: Enhances contrast and color for a more dynamic visual experience.
  • MUX Switch + NVIDIA Advanced Optimus: For direct GPU mode benefits or optimized battery life.



Memory (RAM) and Storage :

• Tri-Fan Technology: Utilizes three fans to maximize airflow.

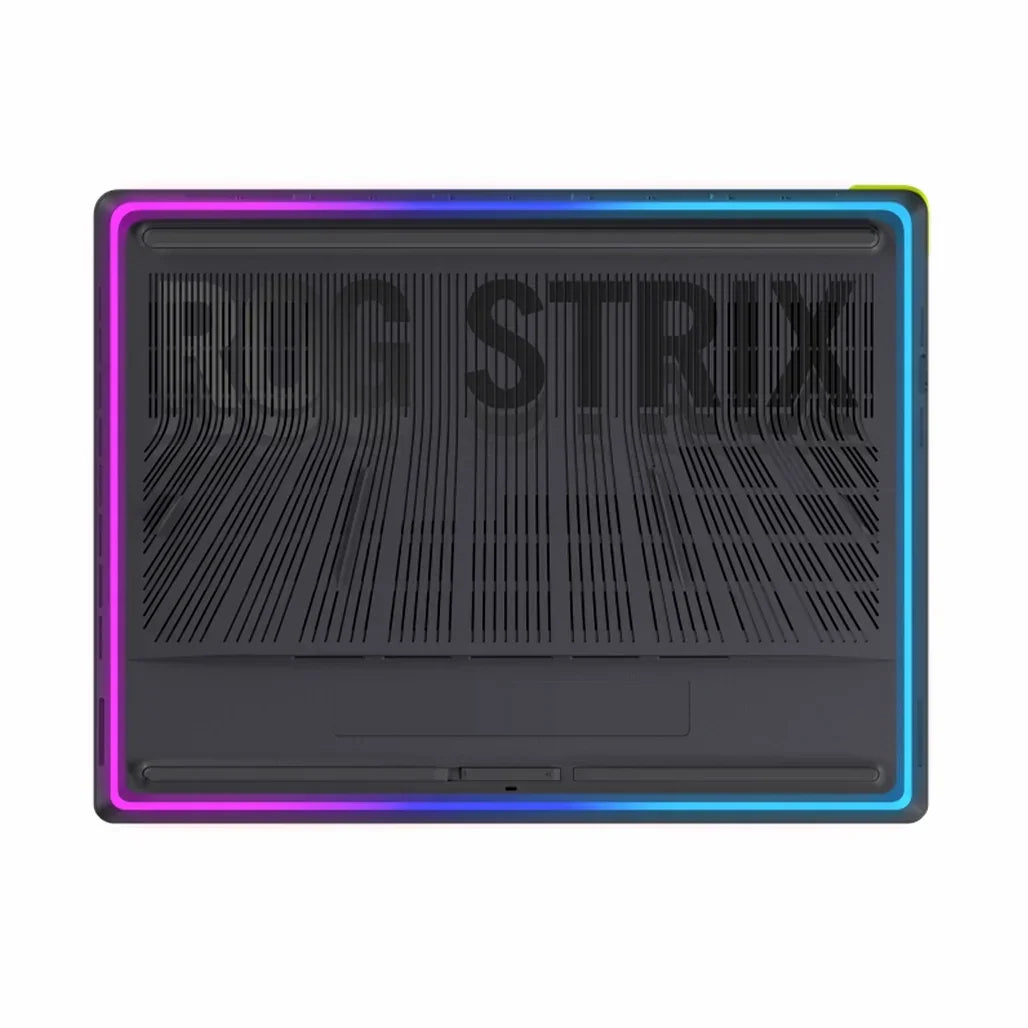

• Full-Surround Vents: Optimizes exhaust for efficient heat dissipation.
• Full-Width Heatsink: Spanning across critical components, it features hundreds of ultra-thin fins for a large surface area.
• Thermal Grizzly's Conductonaut Extreme liquid metal: Applied to the GPU (and sometimes CPU), significantly improving heat transfer compared to traditional thermal paste.
• 7 Comprehensive Heatpipes: An extended heat spreader design with multiple heatpipes efficiently draws heat from the CPU, GPU, VRAM, and VRM.
• 0dB Ambient Cooling: Allows the fans to completely stop during light workloads for silent operation.

Design, Keyboard, and Audio

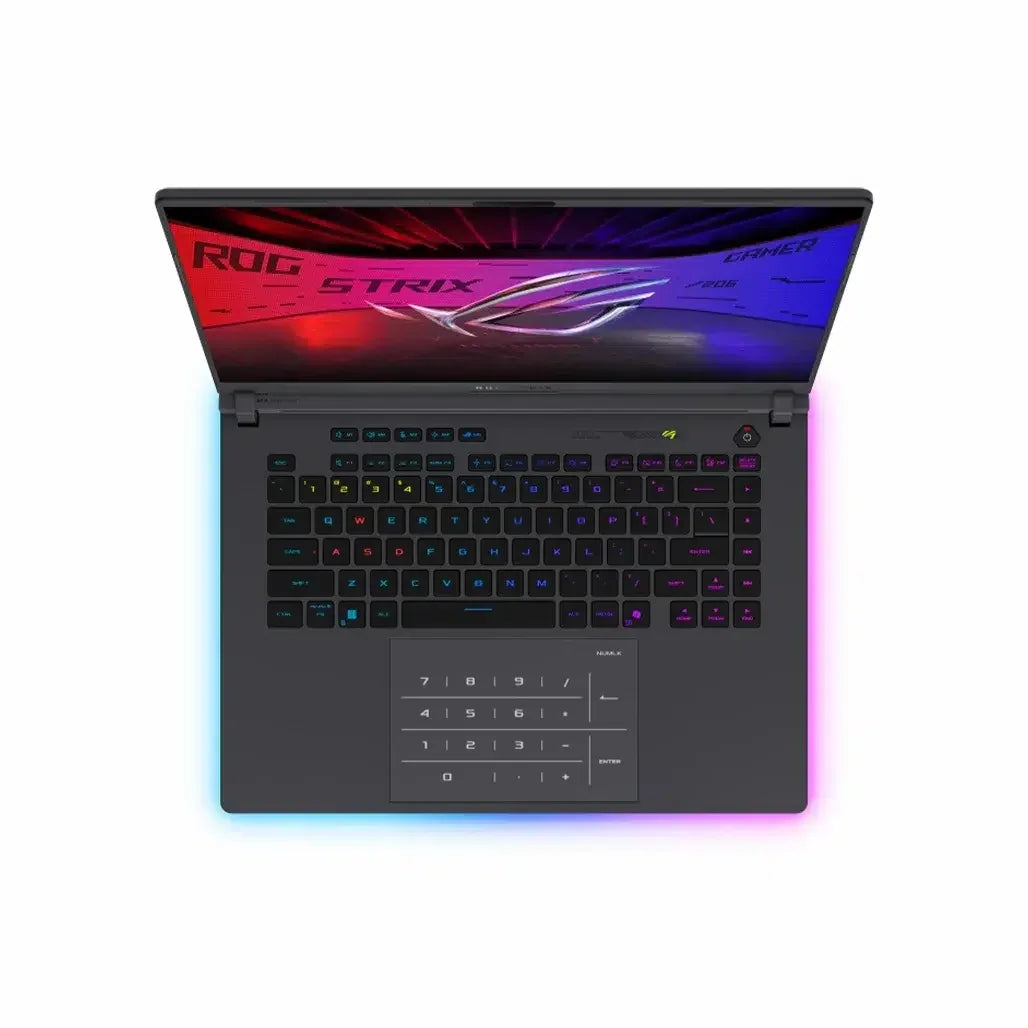

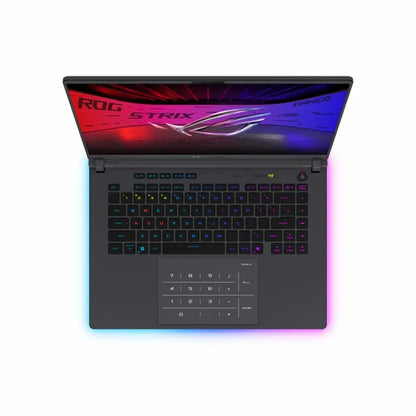

• Keyboard: A full-size, 4-Zone RGB Backlit Chiclet Keyboard with Overstroke technology for faster key actuation, dedicated hotkeys, and a responsive touchpad. Some regional layouts may include a numeric keypad.
• Audio: Equipped with Smart Amp Technology and Dolby Atmos® support, delivering rich, immersive sound. AI noise-canceling technology ensures clear communication during gaming or calls.
• Webcam: A 1080P FHD Camera for clear video conferencing and streaming.

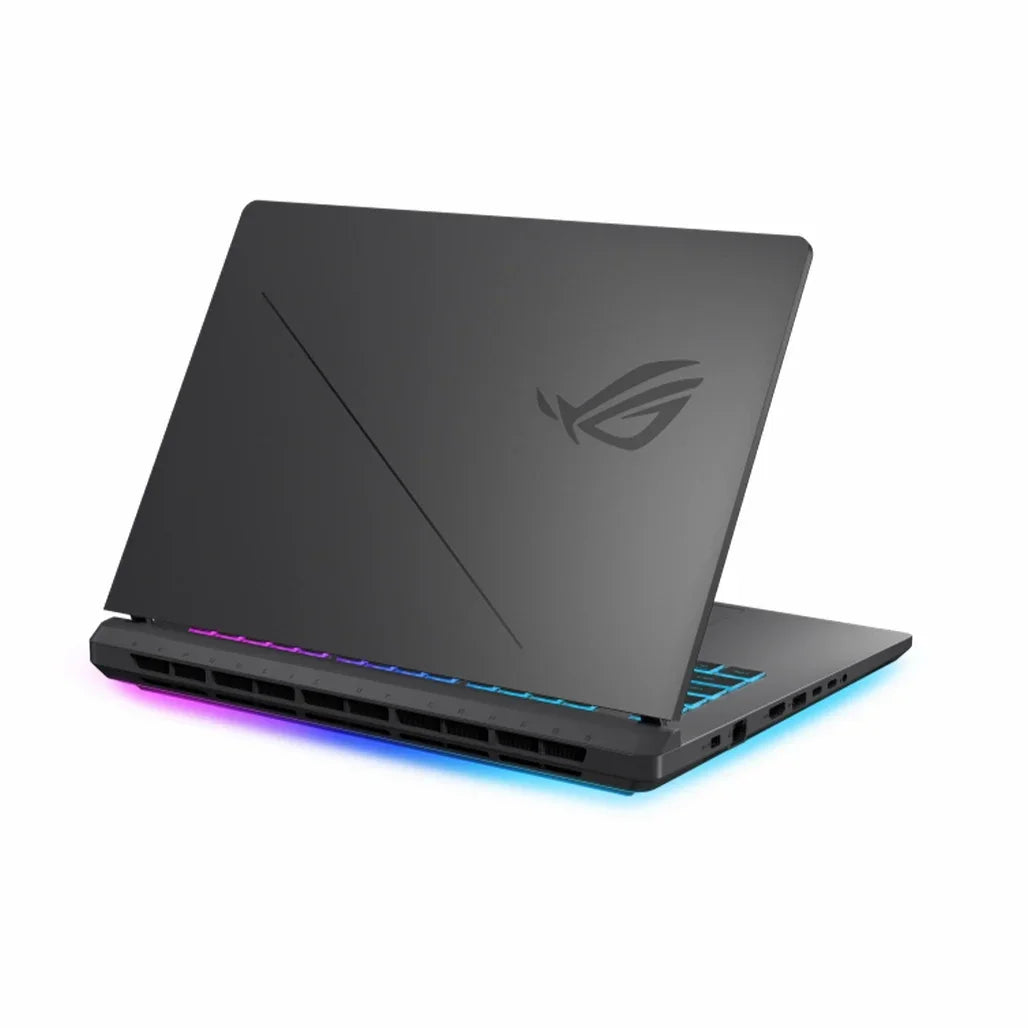

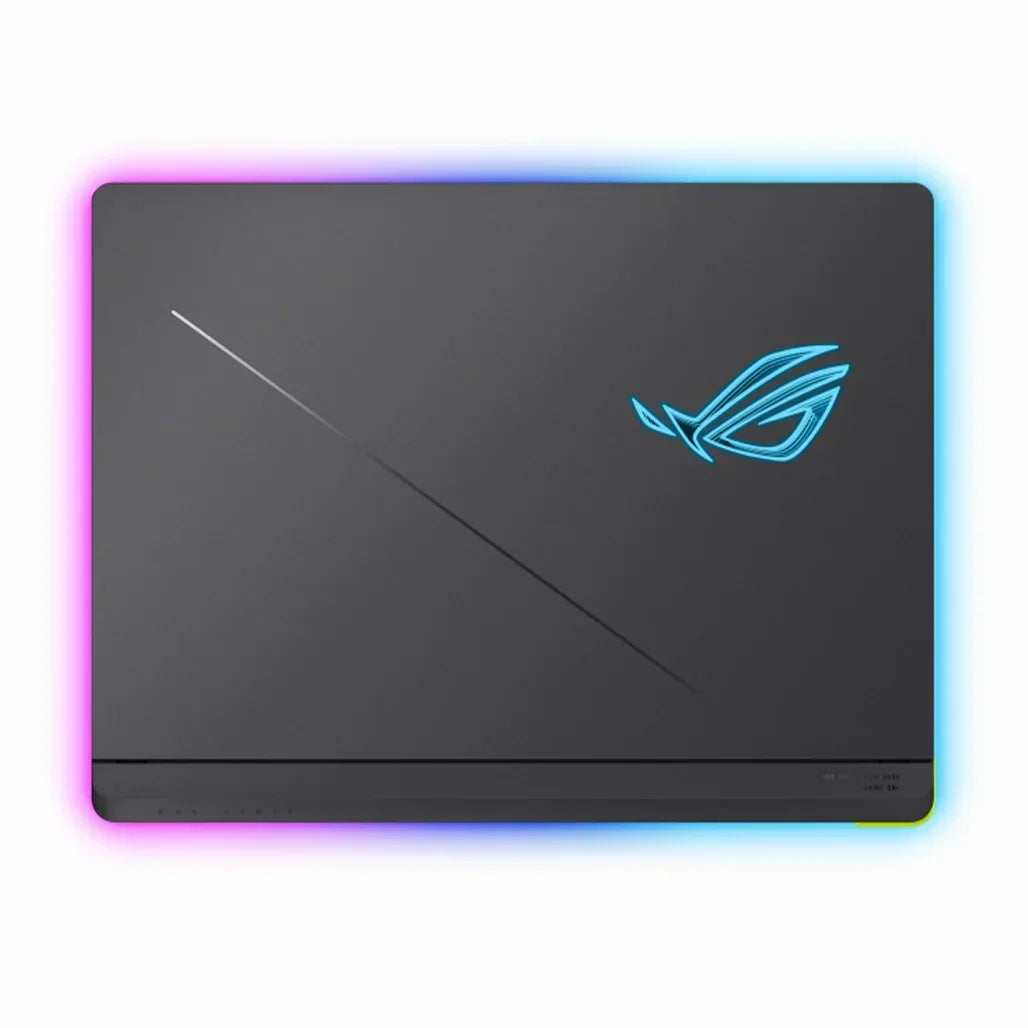

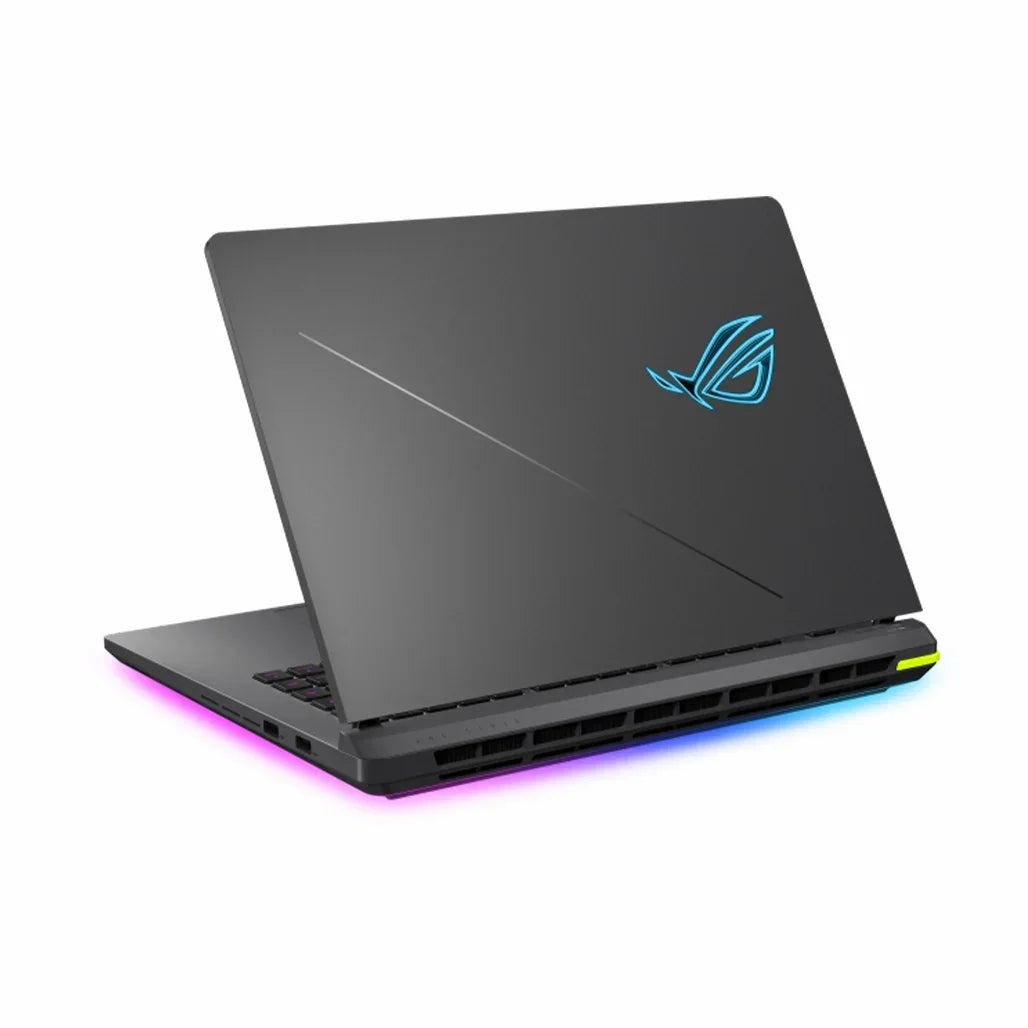

• Chassis: A robust and durable chassis in an Eclipse Gray finish, often featuring an Aura Sync Light Bar at the bottom for additional customizable RGB lighting.
• Weight: Approximately 2.50 kg (5.51 lbs), a reasonable weight for a high-performance 16-inch gaming laptop.



Connectivity  :

• 2x USB 3.2 Gen 2 Type-A ports: For high-speed peripherals.
• 2x USB4 Type-C ports: Highly versatile, supporting DisplayPort™ (for external monitors) and Power Delivery (PD Charger) for convenient charging.
• 1x HDMI® 2.1 FRL: For connecting to high-resolution external displays or TVs.
• 1x RJ45 LAN port: Provides a stable 1 Gigabit Ethernet connection for competitive online gaming.
• 1x 3.5mm Combo Audio Jack: For headsets.
• Wireless: Features Wi-Fi 6E (802.11ax) for ultra-fast, low-latency wireless networking, and Bluetooth® 5.3 for connecting wireless accessories.



Battery and Power :

• Battery: A large 90WHrs, 4-cell Li-ion battery, offering decent battery life for a powerful gaming machine, considering its high-performance components.
• Power Supply: A 280W AC Adapter is included for optimal power delivery during intense gaming and fast charging. USB Type-C charging with a 100W adapter is also supported for portable convenience.

Key Specifications :

• Model: Asus ROG STRIX G16 G614PR-G16R9X7
• Processor: AMD Ryzen™ 9 8940HX (16 Cores / 32 Threads, up to 5.3 GHz, Zen 4, 64MB L3 Cache)
• Graphics: NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU (12GB GDDR7, Blackwell Architecture, up to 140W TGP, DLSS 4, Ray Tracing, Advanced Optimus)
• Display: 16-inch IPS-level (1920 x 1200 WUXGA FHD+), 16:10 Aspect Ratio, 165Hz Refresh Rate, 3ms Response Time, 300 nits Brightness, 100% sRGB, Dolby Vision HDR, NVIDIA G-SYNC, MUX Switch.
• Memory (RAM): 16GB DDR5-5200 SO-DIMM (Max 64GB)
• Storage: 1TB PCIe® 4.0 NVMe™ M.2 SSD
• Operating System: Windows 11 Home
• Cooling: ROG Intelligent Cooling (Tri-Fan, Full-Surround Vents, Full-Width Heatsink, Conductonaut Extreme Liquid Metal on GPU)
• Keyboard: 4-zone RGB Backlit Chiclet Keyboard, Overstroke Technology
• Audio: Smart Amp Tech, Dolby Atmos®, AI Noise-Canceling, Hi-Res Audio
• Webcam: 1080P FHD Camera
• Ports: 2x USB 3.2 Gen 2 Type-A, 2x USB4 Type-C (DP, PD), 1x HDMI 2.1 FRL, 1x RJ45 LAN, 1x 3.5mm Audio Jack
• Wireless: Wi-Fi 6E (802.11ax), Bluetooth 5.3
• Battery: 90 WHrs, 4-cell Li-ion
• Power Adapter: 280W AC Adapter (supports 100W Type-C PD)
• Weight: Approx. 2.50 kg (5.51 lbs)
• Color: Eclipse Gray
