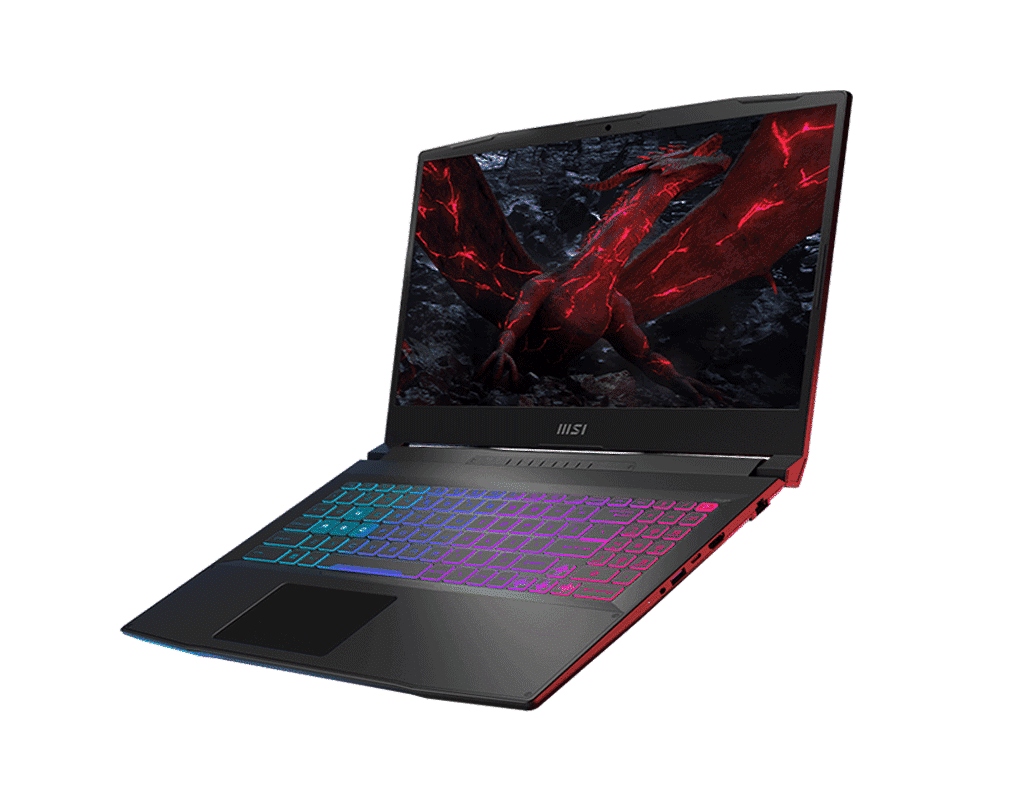

MSI KATANA 17 GAMING 9S7-17L541-803: Unleash Immersive Gaming on a Grand Scale
The MSI KATANA 17 GAMING 9S7-17L541-803 is a powerful gaming laptop built for gamers who prefer a larger display and robust internal components for an immersive experience. It pairs Intel’s high-end 13th Gen mobile processor with NVIDIA’s capable RTX 4060, delivering strong performance for modern gaming and demanding applications.
Processor Prowess:
At the heart of this machine is the 13th Gen Intel® Core™ i9-13900H processor. This is a formidable CPU featuring a hybrid architecture with 14 Cores (6 Performance-cores and 8 Efficient-cores) and 20 Threads. It boasts a substantial 24 MB Intel® Smart Cache and can achieve an impressive Max Turbo Frequency of up to 5.4 GHz (Performance-core) and 4.1 GHz (Efficient-core). This processor delivers exceptional multi-core performance, making it highly effective for gaming, content creation, streaming, and heavy multitasking. The processor base power is 45W, with a maximum turbo power of 115W.
Dedicated Graphics Power:
For stunning visuals and high frame rates, the MSI KATANA 17 is equipped with the NVIDIA® GeForce RTX™ 4060 Laptop GPU with 8GB of GDDR6 dedicated memory. Based on the efficient Ada Lovelace architecture, the RTX 4060 supports advanced gaming technologies like DLSS 3 with Frame Generation for significant performance boosts in supported titles, and real-time Ray Tracing for incredibly realistic lighting and shadows. In the Katana 17 series, the RTX 4060 typically operates with a Total Graphics Power (TGP) of up to 105W (with Dynamic Boost), allowing it to push strong performance while maintaining thermal stability within the chassis. It also features NVIDIA Max-Q Technologies for optimized power and performance efficiency.
Expansive Gaming Display:
The visual experience is centered around a large 17.3-inch Full HD (1920 x 1080) IPS-Level Display. This panel offers a high 144Hz refresh rate, ensuring incredibly smooth and fluid motion for fast-paced games, reducing ghosting and tearing. The IPS-Level technology provides wide viewing angles and consistent colors, enhancing overall visual quality for both gaming and multimedia consumption.
Memory and Storage:
The MSI KATANA 17 laptop comes equipped with 16GB of high-speed DDR5-5200MHz RAM. This is typically configured in a dual-channel setup (2x8GB) for optimal performance and can be upgraded to a maximum of 64GB across its 2 SO-DIMM slots. For rapid data access and ample space, it features a 1TB NVMe PCIe Gen 4 SSD, ensuring lightning-fast boot times, quick game loading, and responsive system performance. The laptop usually includes an additional M.2 slot for future storage expansion.
Advanced Cooling System (Cooler Boost 5):
To manage the heat generated by the powerful CPU and GPU, the MSI KATANA 17 employs MSI’s Cooler Boost 5 technology. This cooling system typically consists of a shared-pipe design for the CPU and GPU, multiple heat pipes, and dual fans, meticulously designed to maximize airflow and thermal dissipation, allowing the components to sustain high performance during extended gaming sessions.
Design and User Experience:
The MSI KATANA 17 features a robust and gaming-oriented design, often in a sleek black finish.
- Keyboard: It boasts a 4-Zone RGB Backlit Gaming Keyboard with highlighted WASD keys, allowing for customizable lighting effects to personalize your setup and enhance the gaming atmosphere. It includes a full numeric keypad.
- Webcam: An HD (720p) webcam (30fps) is integrated for video conferencing and streaming.
- Audio: Equipped with 2x 2W speakers and enhanced with Nahimic 3 Audio, it delivers immersive virtual surround sound for games and multimedia.
- MSI Center: Pre-installed MSI Center software allows users to monitor system performance, customize settings (like fan speed and RGB lighting), and optimize gaming modes.
Comprehensive Connectivity:
The MSI KATANA 17 provides a wide array of ports for peripherals and external displays:
- 1x USB 3.2 Gen 1 Type-C port (with DisplayPort 1.4 support)
- 2x USB 3.2 Gen 1 Type-A ports
- 1x USB 2.0 Type-A port
- 1x HDMI™ 2.1 port (supporting 8K @ 60Hz or 4K @ 120Hz external display output)
- 1x RJ45 Ethernet port (Gigabit LAN) for stable wired network connections.
- 1x Mic-in/Headphone-out Combo Jack
- Wireless: Equipped with Wi-Fi 6 (802.11ax) and Bluetooth® v5.2 for fast and reliable wireless networking and peripheral connections.
Battery and Power:
The MSI KATANA 17 laptop typically houses a 3-cell, 53.5 Whr Li-Polymer battery and comes with a 200W AC power adapter, providing the necessary power for its high-performance components.
The MSI KATANA 17 GAMING 9S7-17L541-803 is an excellent choice for gamers who prioritize a large, high-refresh-rate display and robust performance from a 13th Gen Intel Core i9 and an RTX 4060, all within a well-cooled and feature-rich chassis.
Key Specifications :
- Model: MSI KATANA 17 GAMING (Specific SKU: 9S7-17L541-803)
- Processor: 13th Gen Intel® Core™ i9-13900H (14 Cores / 20 Threads, 24MB Smart Cache, up to 5.4 GHz Max Turbo Frequency)
- Graphics: NVIDIA® GeForce RTX™ 4060 Laptop GPU with 8GB GDDR6 VRAM (up to 105W TGP with Dynamic Boost)
- Display: 17.3-inch Full HD (1920 x 1080) IPS-Level, 144Hz Refresh Rate, Anti-Glare
- Memory (RAM): 16GB DDR5-5200MHz (2x8GB, 2 SO-DIMM slots, Max 64GB supported)
- Storage: 1TB NVMe PCIe Gen 4 SSD (1x M.2 slot populated, typically 2x M.2 slots total)
- Operating System: Windows 11 Home
- Cooling: MSI Cooler Boost 5 Technology
- Keyboard: 4-Zone RGB Backlit Gaming Keyboard with Numeric Keypad
- Webcam: HD (720p) type (30fps)
- Audio: 2x 2W Speakers, Nahimic 3 Audio
- Ports:
- 1x USB 3.2 Gen 1 Type-C (with DisplayPort 1.4)
- 2x USB 3.2 Gen 1 Type-A
- 1x USB 2.0 Type-A
- 1x HDMI™ 2.1 (8K@60Hz / 4K@120Hz)
- 1x RJ45 Ethernet (Gigabit LAN)
- 1x Mic-in/Headphone-out Combo Jack
- Wireless: Wi-Fi 6 (802.11ax), Bluetooth® v5.2
- Battery: 3-Cell, 53.5 Whr Li-Polymer
- Power Adapter: 200W AC Adapter
- Chassis Color: Black
- Dimensions (WxDxH): Approx. 398 x 273 x 25.2 mm (15.67 x 10.75 x 0.99 inches)
- Weight: Approx. 2.6 kg (5.73 lbs)
